Pressure containment

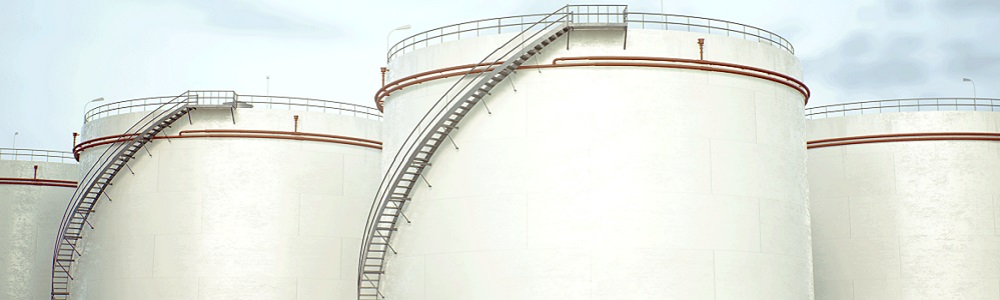

Storage Tanks

Storage solutions configured for the product and installation.

Equipment overview

Engineered for the application.

Pars Technic fabricates storage tanks for industrial service. Tank geometry, material selection, connections, and installation requirements are developed around the stored product and the project specification.

Engineering scope

Custom tank configurations
Material selection aligned with the stored medium
Project-specific nozzles and connections
Fabrication, inspection, and documentation coordination

At a glance

Storage Tanks — equipment summary
Equipment	Industrial storage tanks
Design inputs	Stored medium, capacity, conditions, and installation
Construction	Materials and configuration defined by the project
Applications	Process and industrial storage

How it works

Inside an API 650 storage tank.

A vertical cylindrical tank with a fixed cone roof, built course by course on a concrete ring wall. Set the liquid level and watch the float-and-tape gauge follow it, while the panel works out how thick each shell course must be.

Float and tape: the level the gauge head countsShell 12 m × 12 m in five 2.4 m courses, thickness at the cut drawn ten times trueAn illustrative tank: D = 12 m, design liquid level H = 12 m, specific gravity G = 0.85, corrosion allowance CA = 3 mm, ASTM A36 plate with Sd = 160 MPa and St = 171 MPa. Shell courses follow the API 650 one-foot method, td = 4.9·D·(H − 0.3)·G / Sd + CA and tt = 4.9·D·(H − 0.3) / St (mm, with H measured from the bottom of each course); the larger governs, never less than 5 mm for diameters under 15 m, rounded up to a stock plate. Volume, bottom pressure (ρgh) and the bottom course's stress follow the level. Values are illustrative; every tank is designed to its own data.

Level and shell design

Fill the tank

The level moves the float, the gauge counter and the first four rows. The courses below are designed for the full design level, bottom course first: td and tt in millimetres, and each course takes the next stock plate at or above the larger, never under 5 mm.

Liquid level3.60 m

Liquid level: 3.60 m
Stored volume: 407 m³
Pressure at the bottom: 30.0 kPa
Course 1 hoop stress, corroded: 33 MPa
Course 1 · td 6.65 · tt 4.02: 8 mm
Course 2 · td 5.91 · tt 3.20: 6 mm
Course 3 · td 5.16 · tt 2.37: 6 mm
Course 4 · td 4.41 · tt 1.55 · min 5: 5 mm
Course 5 · td 3.66 · tt 0.72 · min 5: 5 mm
Sd, ASTM A36 design: 160 MPa
St, hydrostatic test: 171 MPa
Corrosion allowance: 3 mm

Design referencesAPI 650: 5.6.1.1 minimum shell thickness, 5.6.3 one-foot method, Table 5-2a allowable stresses. API 620 covers large low-pressure tanks, API 653 inspection and repair, and API 2000 venting.

Technical documents

Equipment resources.

Full technical library

Storage TanksPDF · 0.6 MB · Opens in a new tab

From our archive

Equipment in focus.

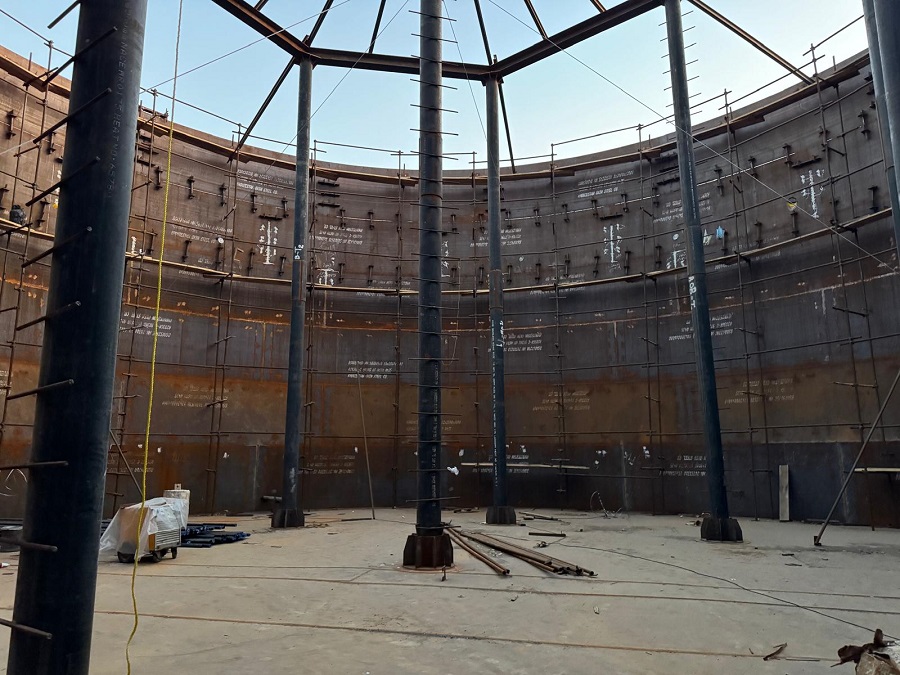

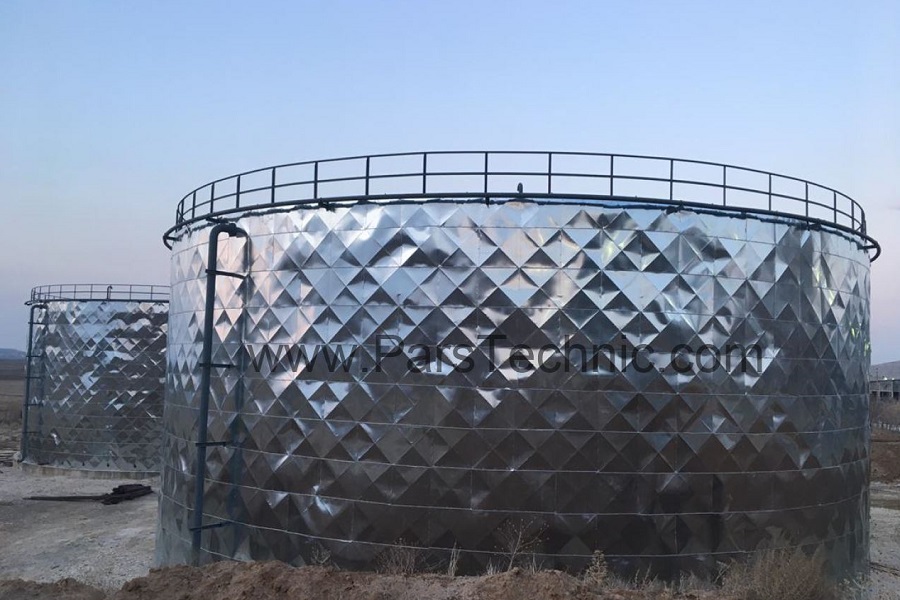

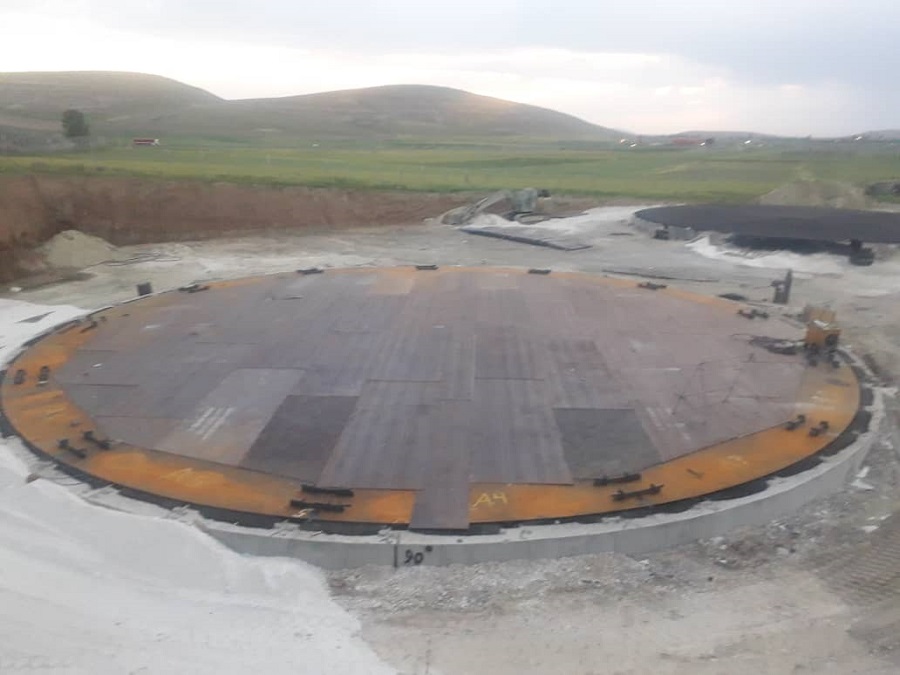

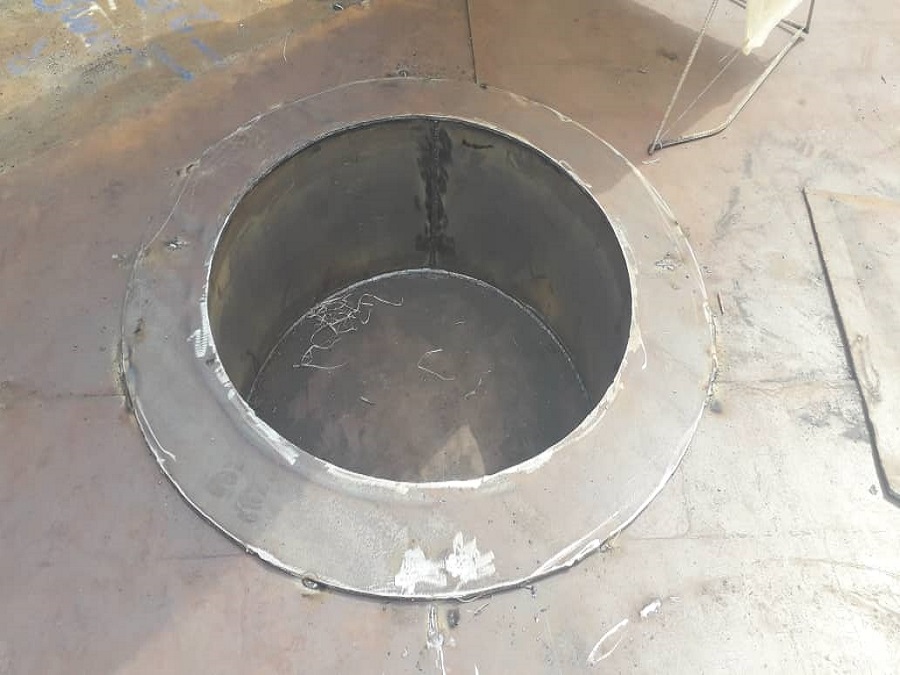

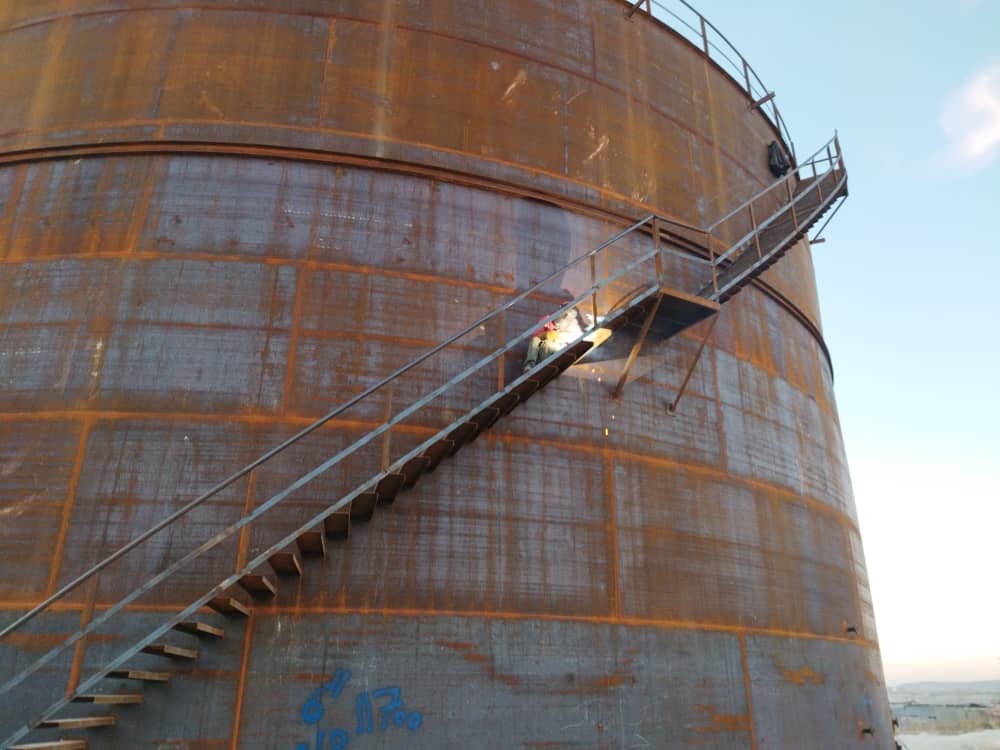

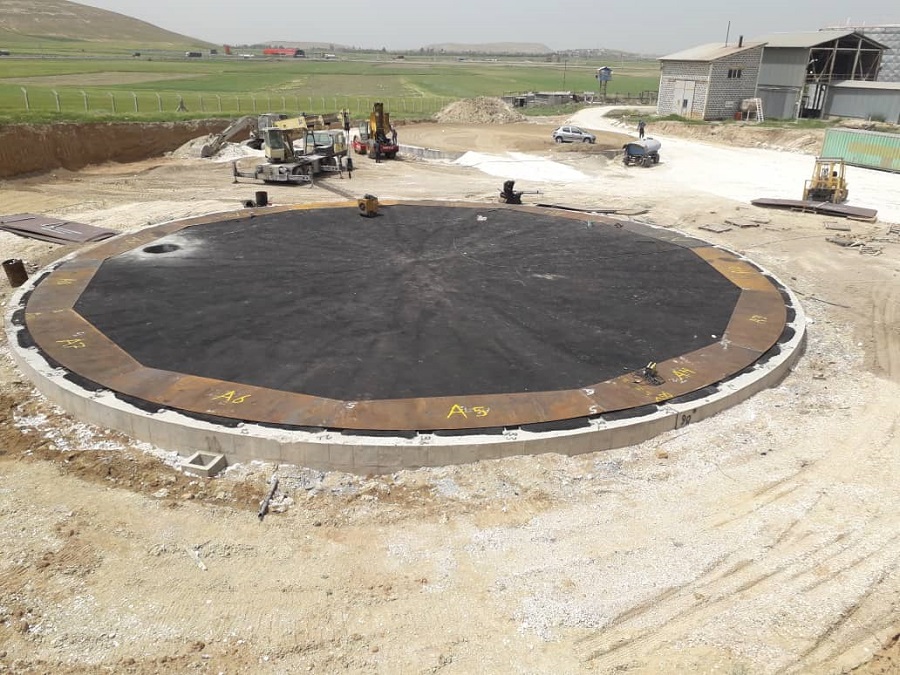

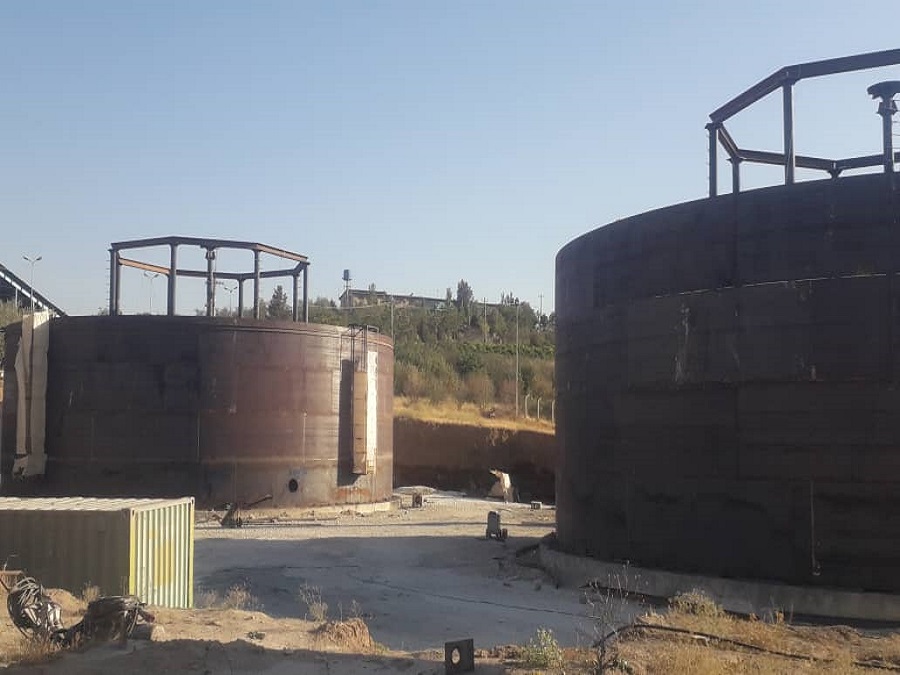

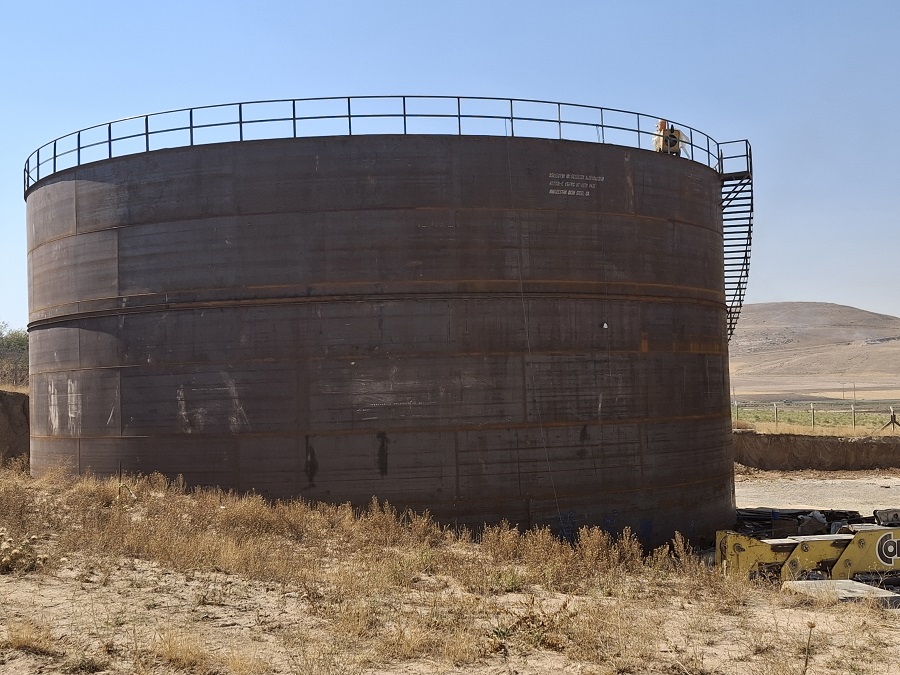

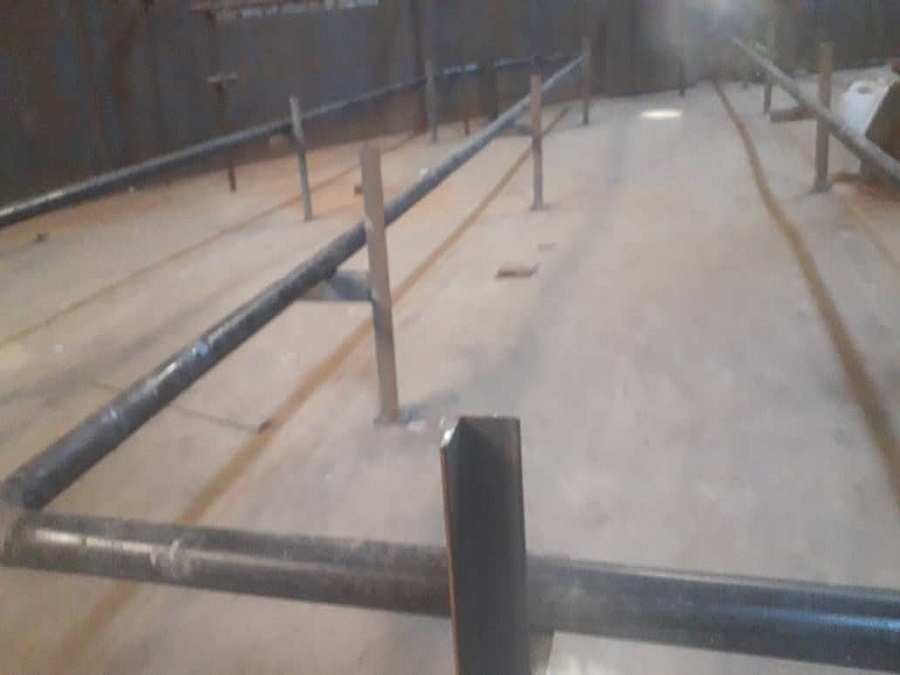

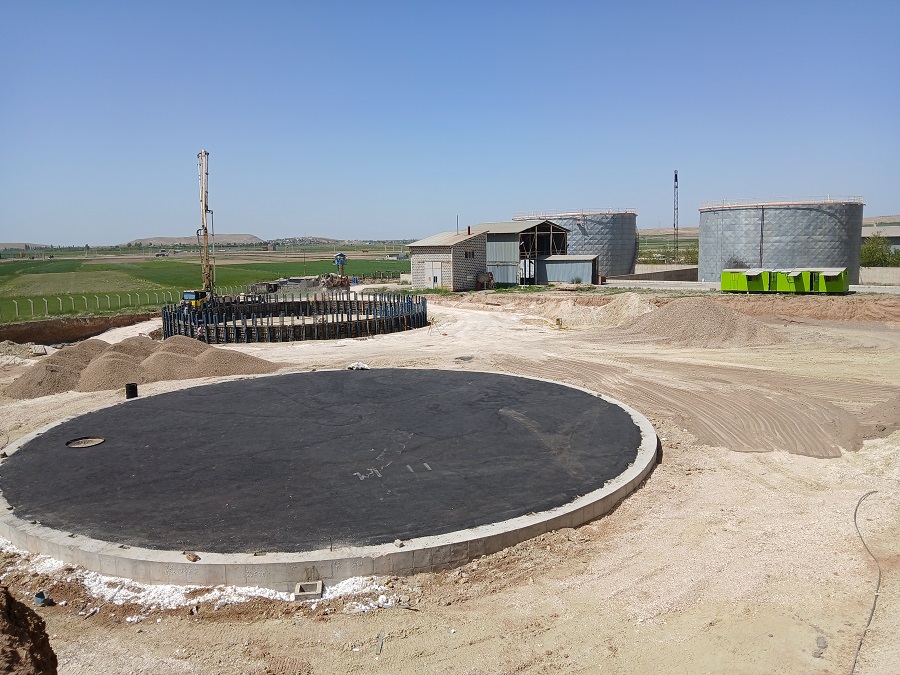

Storage Tanks: Equipment photograph 01 — Storage TanksEquipment photograph 01

Storage Tanks: Equipment photograph 02 — Storage TanksEquipment photograph 02

Storage Tanks: Equipment photograph 03 — Storage TanksEquipment photograph 03

Storage Tanks: Equipment photograph 04 — Storage TanksEquipment photograph 04

Storage Tanks: Equipment photograph 05 — Storage TanksEquipment photograph 05

Storage Tanks: Equipment photograph 06 — Storage TanksEquipment photograph 06

Storage Tanks: Equipment photograph 07 — Storage TanksEquipment photograph 07

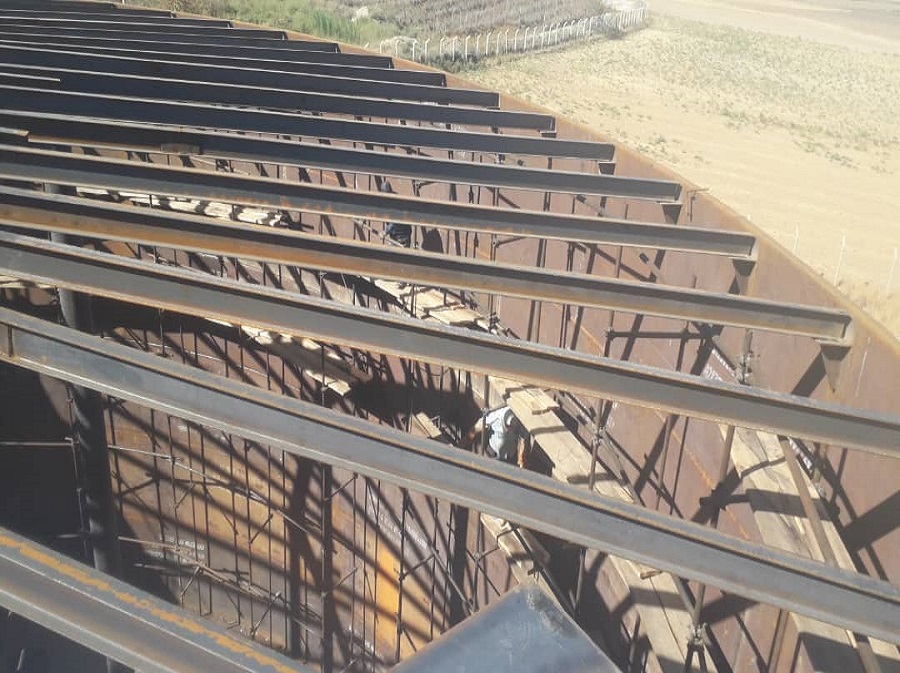

Storage Tanks: Equipment photograph 08 — Storage TanksEquipment photograph 08

Storage Tanks: Equipment photograph 09 — Storage TanksEquipment photograph 09

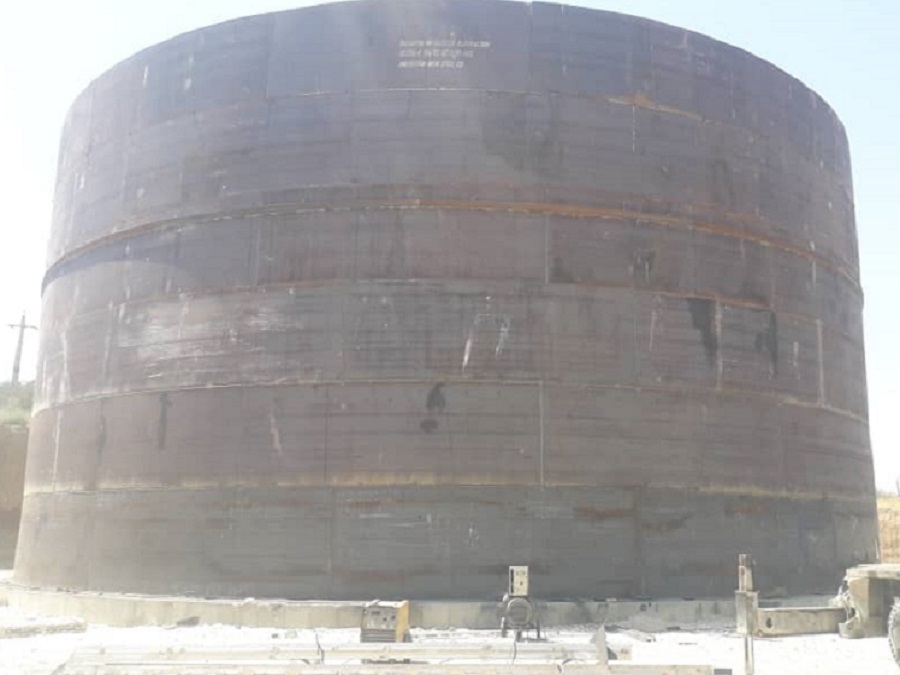

Storage Tanks: Equipment photograph 11 — Storage TanksEquipment photograph 11

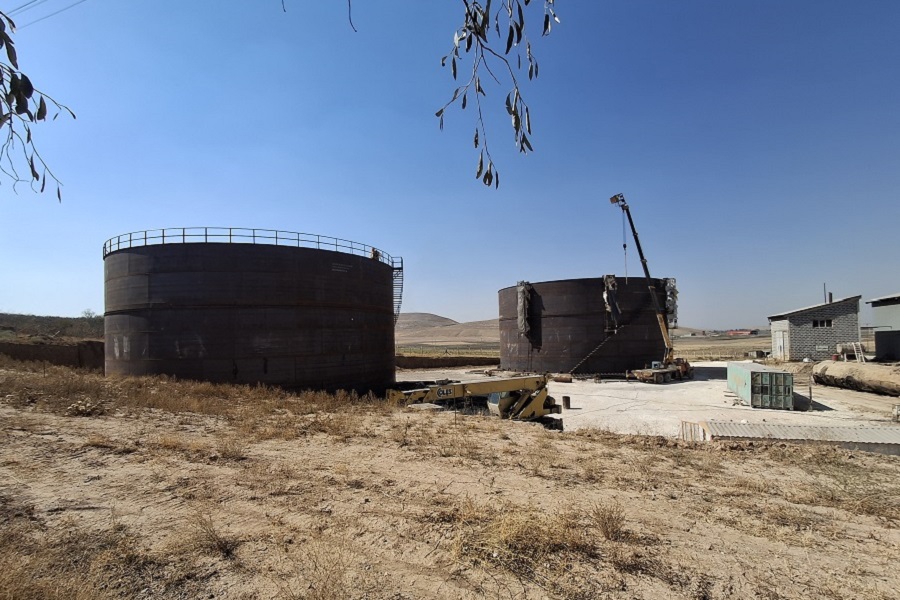

Storage Tanks: Equipment photograph 12 — Storage TanksEquipment photograph 12

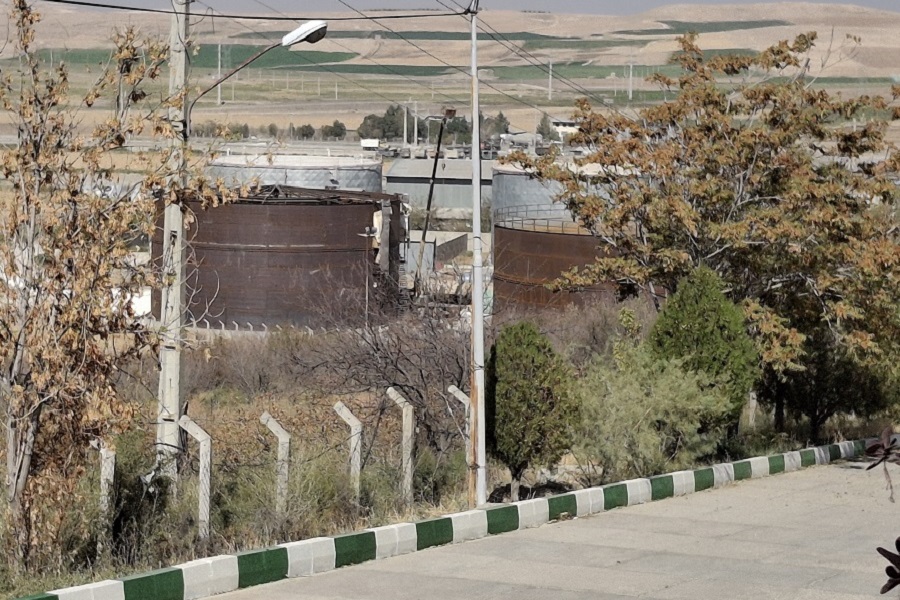

Storage Tanks: Equipment photograph 15 — Storage TanksEquipment photograph 15

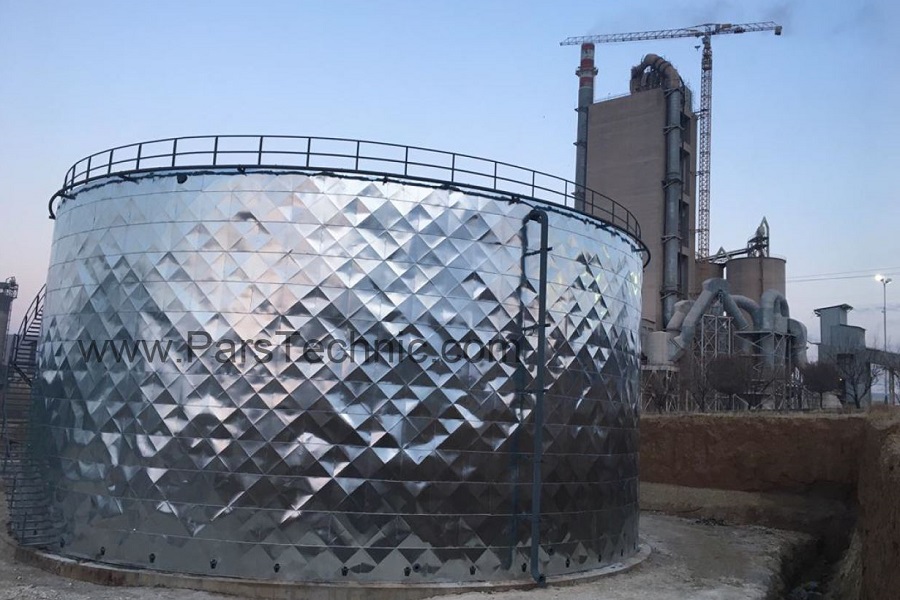

Storage Tanks: Equipment photograph 16 — Storage TanksEquipment photograph 16

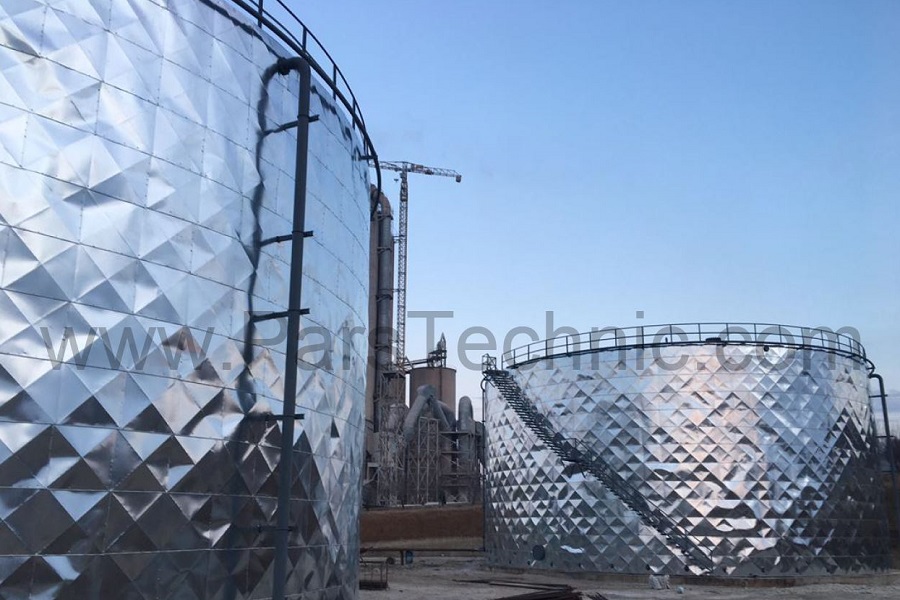

Storage Tanks: Equipment photograph 17 — Storage TanksEquipment photograph 17

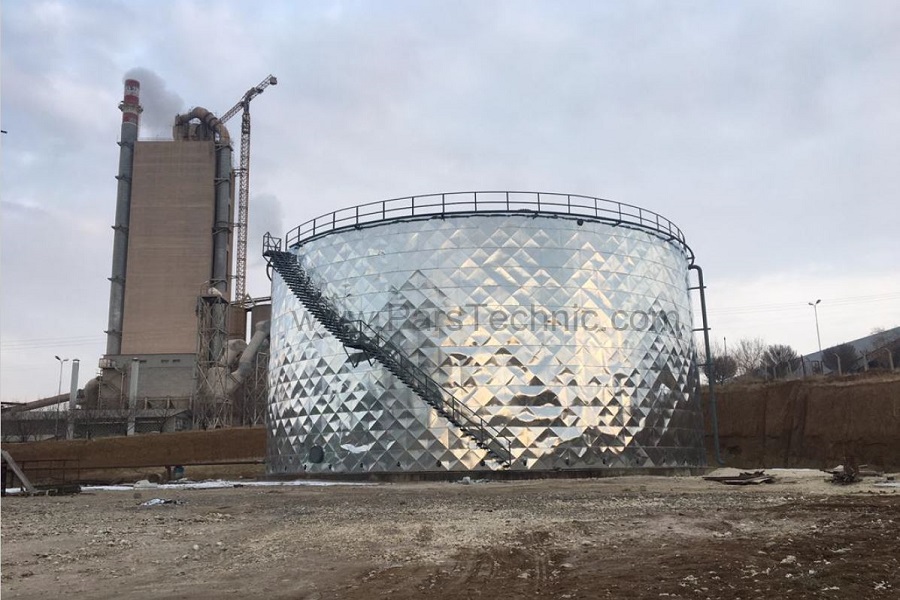

Storage Tanks: Equipment photograph 18 — Storage TanksEquipment photograph 18
