Specialized Process Equipment

Additional equipment developed for specific process duties.

Discuss this equipment
Specialized Process Equipment equipment
Equipment overview

Engineered for the application.

Beyond the core equipment portfolio, Pars Technic’s technical library includes indirect gas heaters, metering systems, and mist elimination equipment. Talk to the engineering team to define the equipment and documentation needed for your application.

Engineering scope

  • Indirect gas heating equipment
  • Metering systems
  • Vane mist elimination equipment
  • Custom engineering for defined process requirements

At a glance

Specialized Process Equipment — equipment summary
ScopeSpecialized and custom process equipment
ApplicationsGas heating, metering, and mist elimination
Design inputsProcess duty and project specifications
DocumentationEquipment-specific brochures in the technical library
How it works

Heat before the pressure drops.

When gas is let down from pipeline pressure it cools, about half a degree for every bar. An indirect heater warms it first: a burner fires into a U-shaped tube in a bath of water, and the gas passes through a coil in the same water, never near the flame.

Thermometer and gauge needles: what the model readsGas flowBurner flame, seen in the sight glassIllustrative duty: 10,000 Sm³/h of natural gas (2.00 kg/s) at 60 bar g and 10 °C, let down to the pressure you set. Joule-Thomson cooling is taken as 0.5 °C per bar and the gas must stay at or above 5 °C after the valve. Heater duty Q = m · cp · ΔT with cp = 2.4 kJ/(kg·K); firing = Q ÷ 0.8 thermal efficiency. At 20 bar g that is 72 kW into the gas and 90 kW of fuel, with the bath near 43 °C. The coil passes 45 % of the bath-to-gas temperature difference to the gas. The bath's hours-long warming is shown in seconds. Real heaters are sized for their own gas, pressures and site.
Technical documents

Equipment resources.

Full technical library
Pressure VesselsPDF · 0.5 MB · Opens in a new tab
From our archive

Equipment in focus.

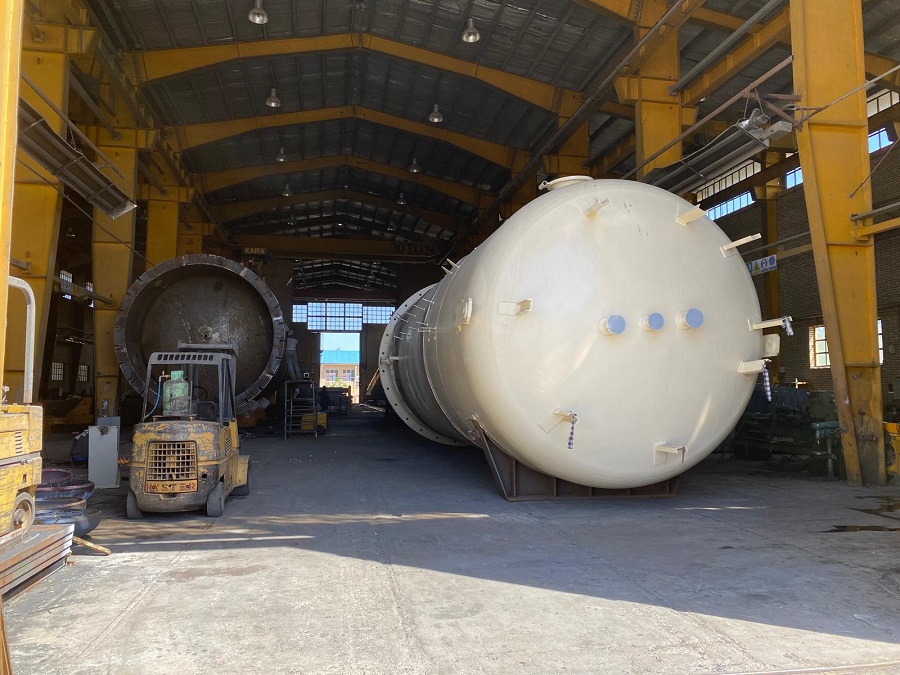

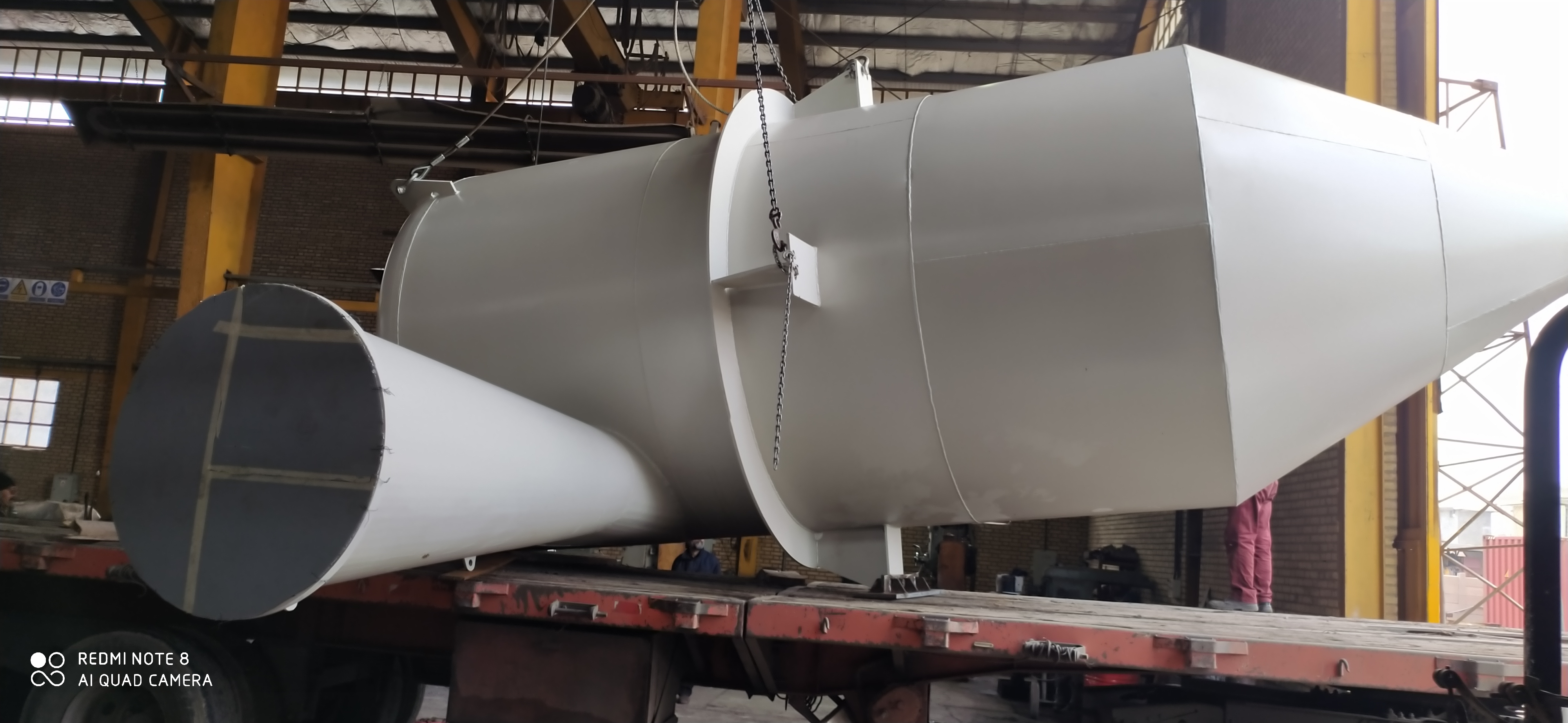

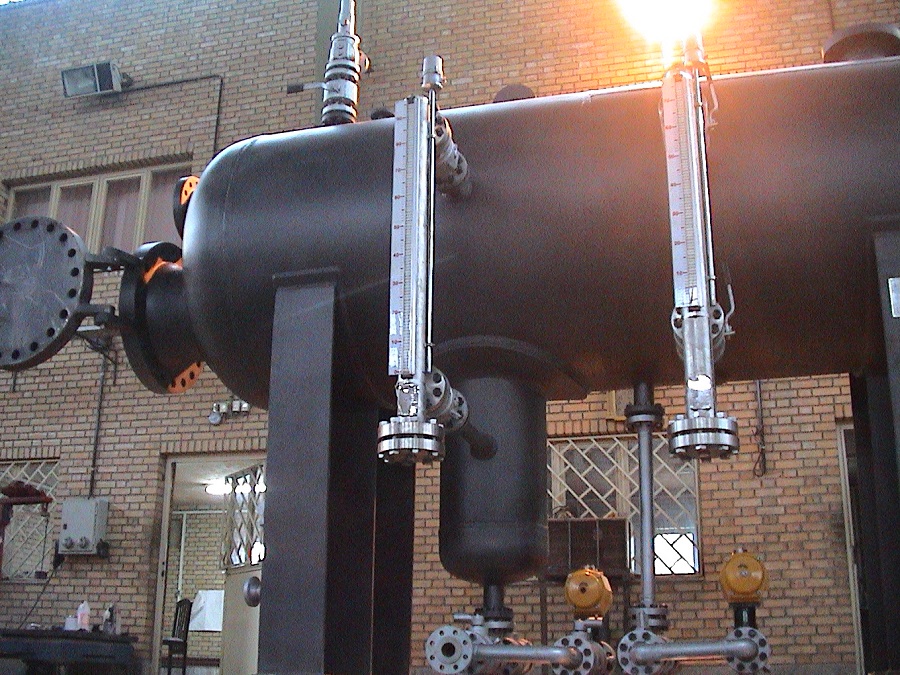

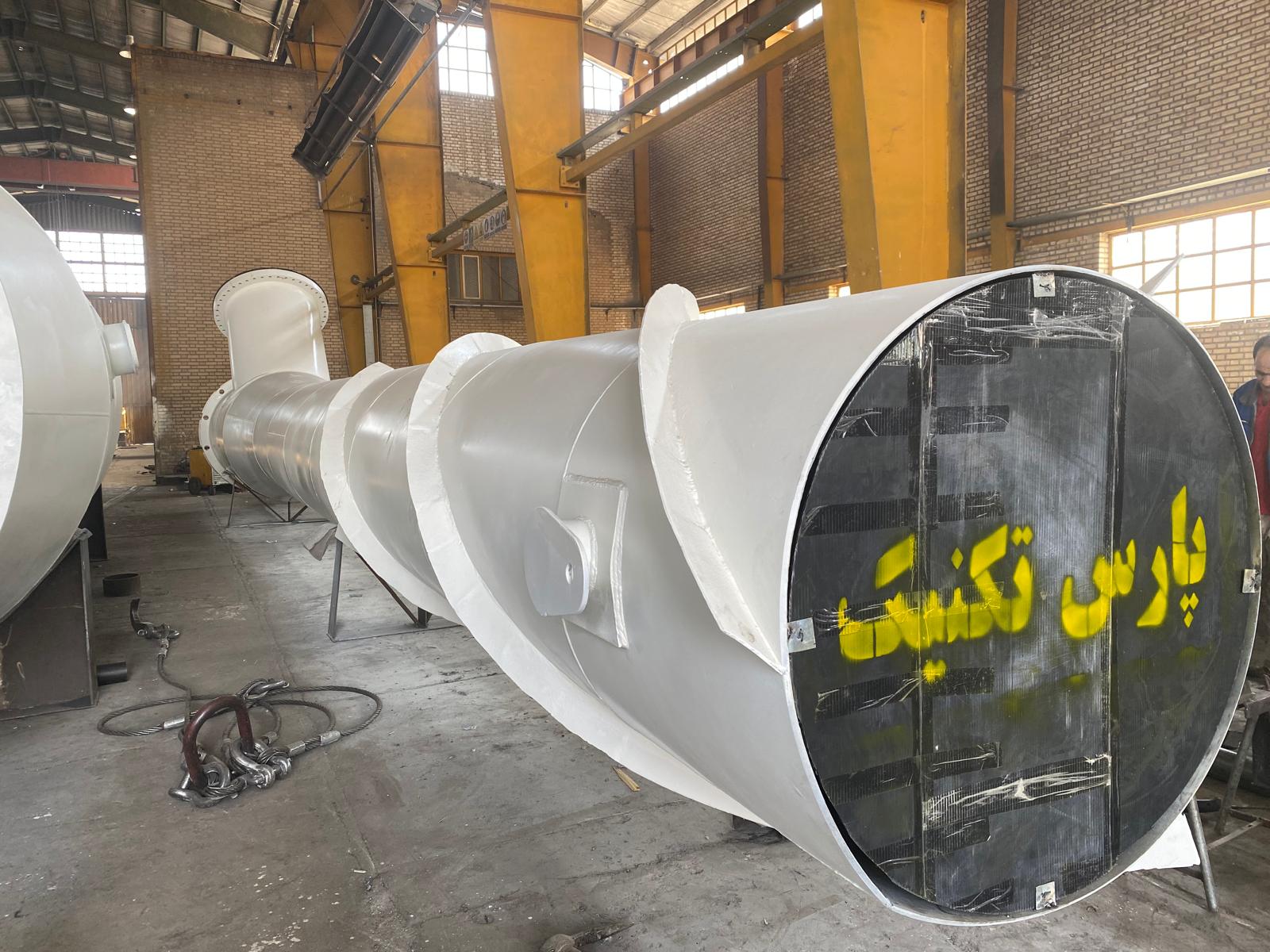

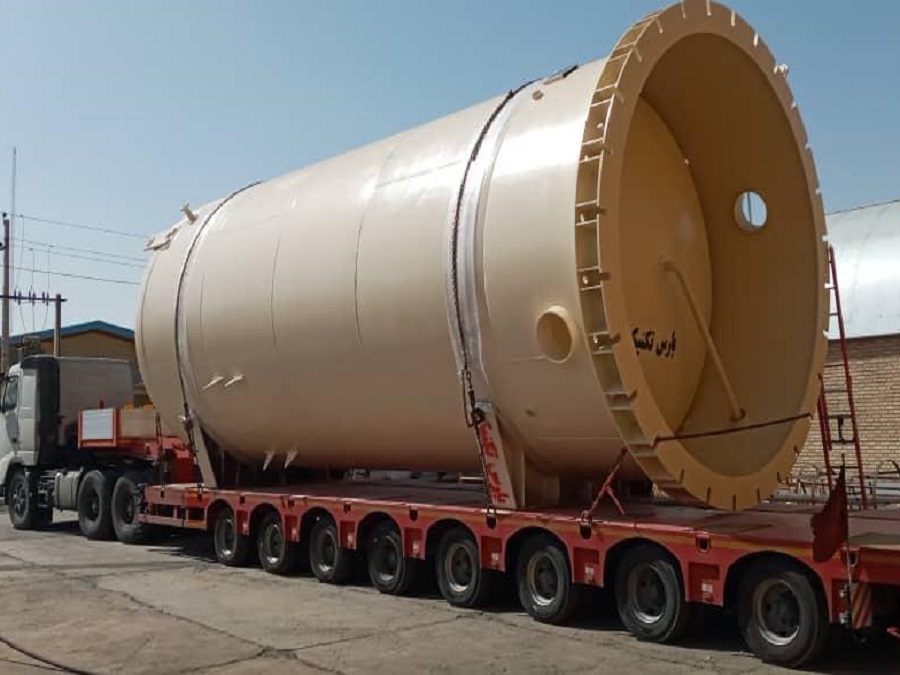

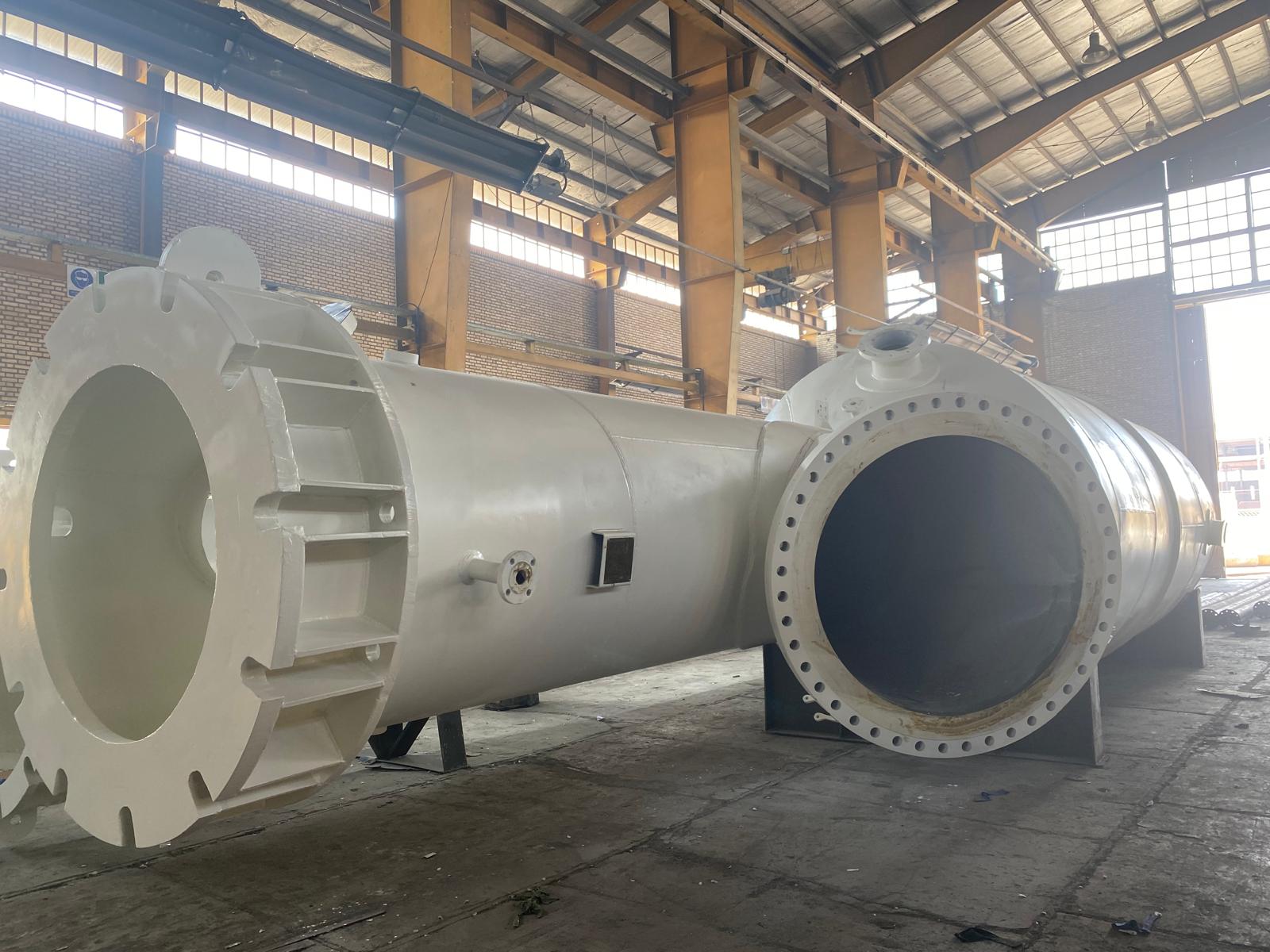

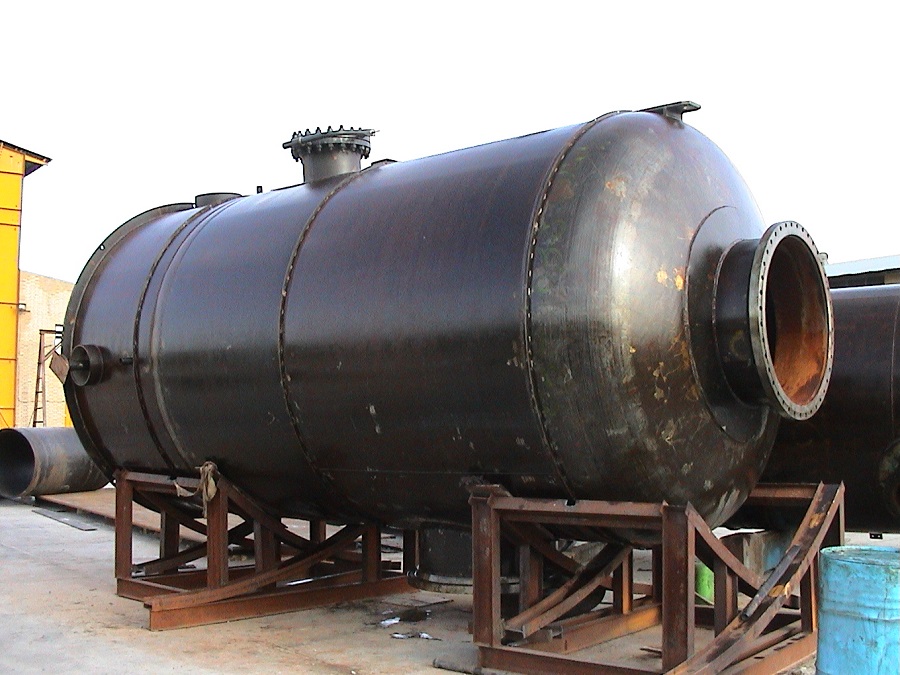

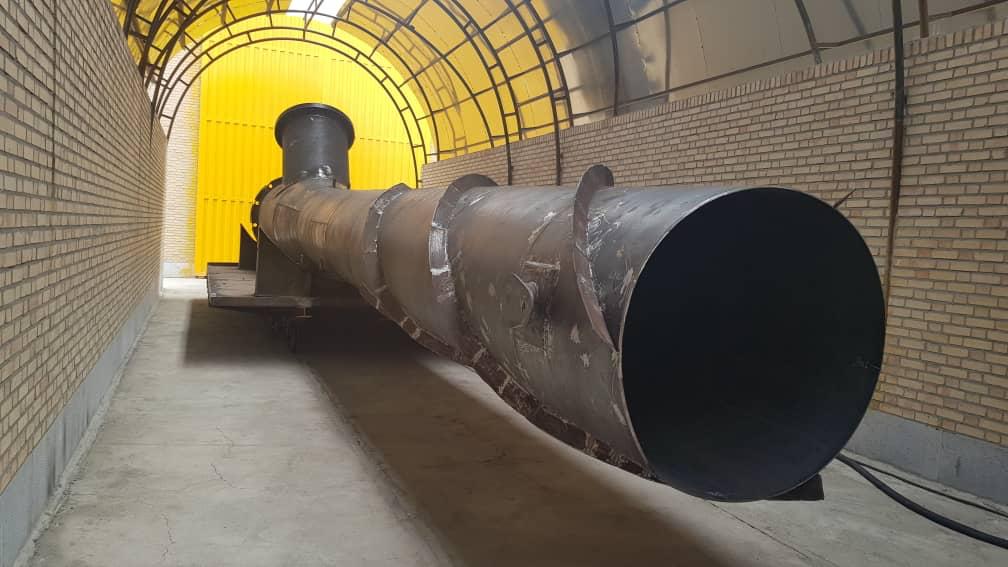

Specialized Process Equipment: Equipment photograph 01
Specialized Process EquipmentEquipment photograph 01

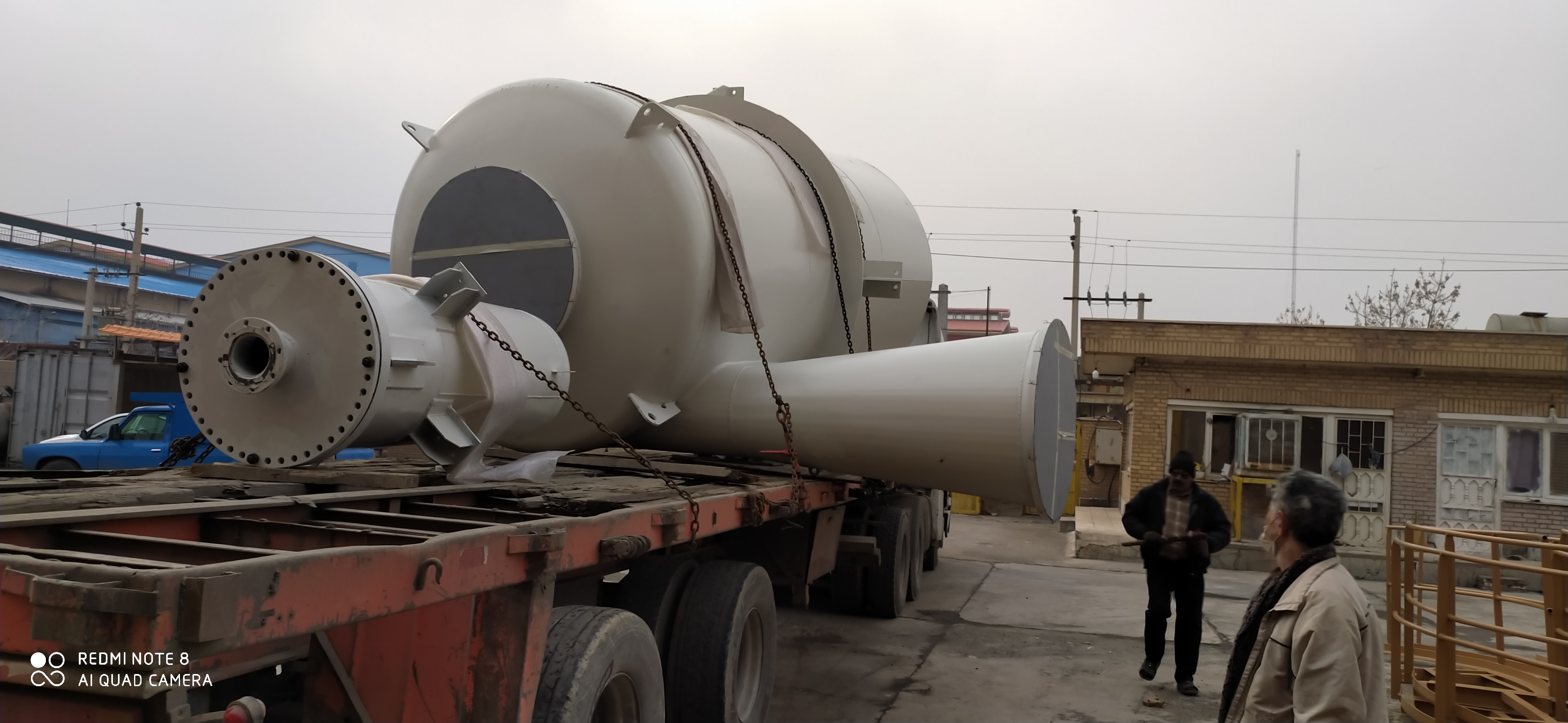

Specialized Process Equipment: Equipment photograph 02
Specialized Process EquipmentEquipment photograph 02

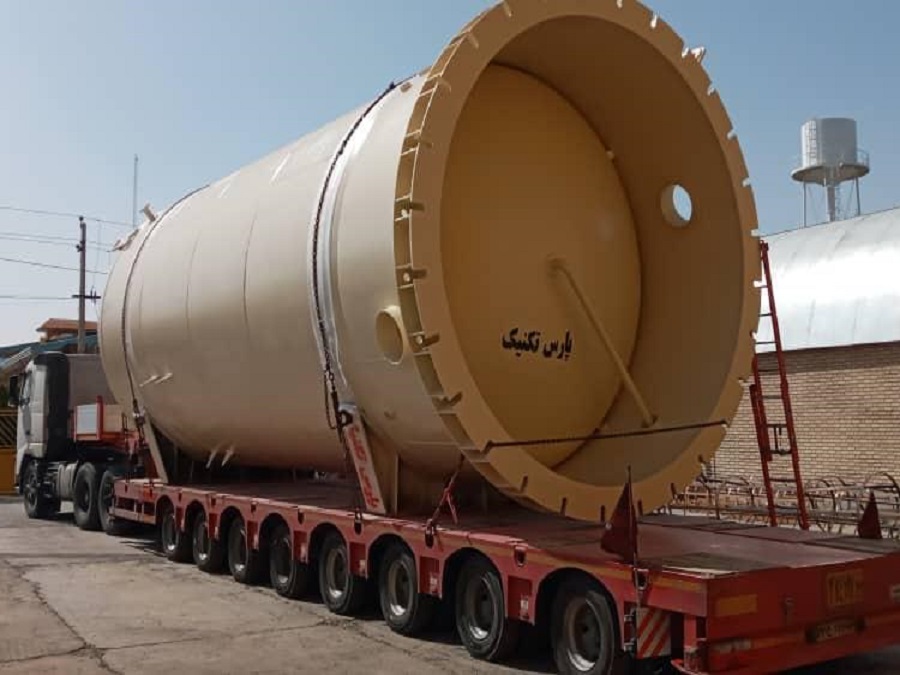

Specialized Process Equipment: Equipment photograph 03
Specialized Process EquipmentEquipment photograph 03

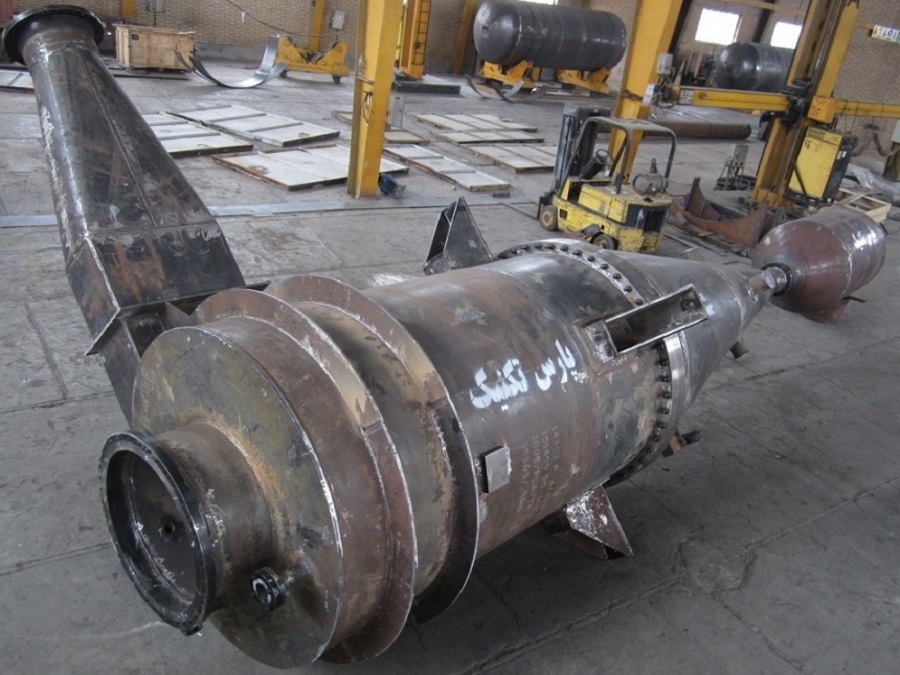

Specialized Process Equipment: Equipment photograph 04
Specialized Process EquipmentEquipment photograph 04
Specialized Process Equipment: Equipment photograph 05
Specialized Process EquipmentEquipment photograph 05

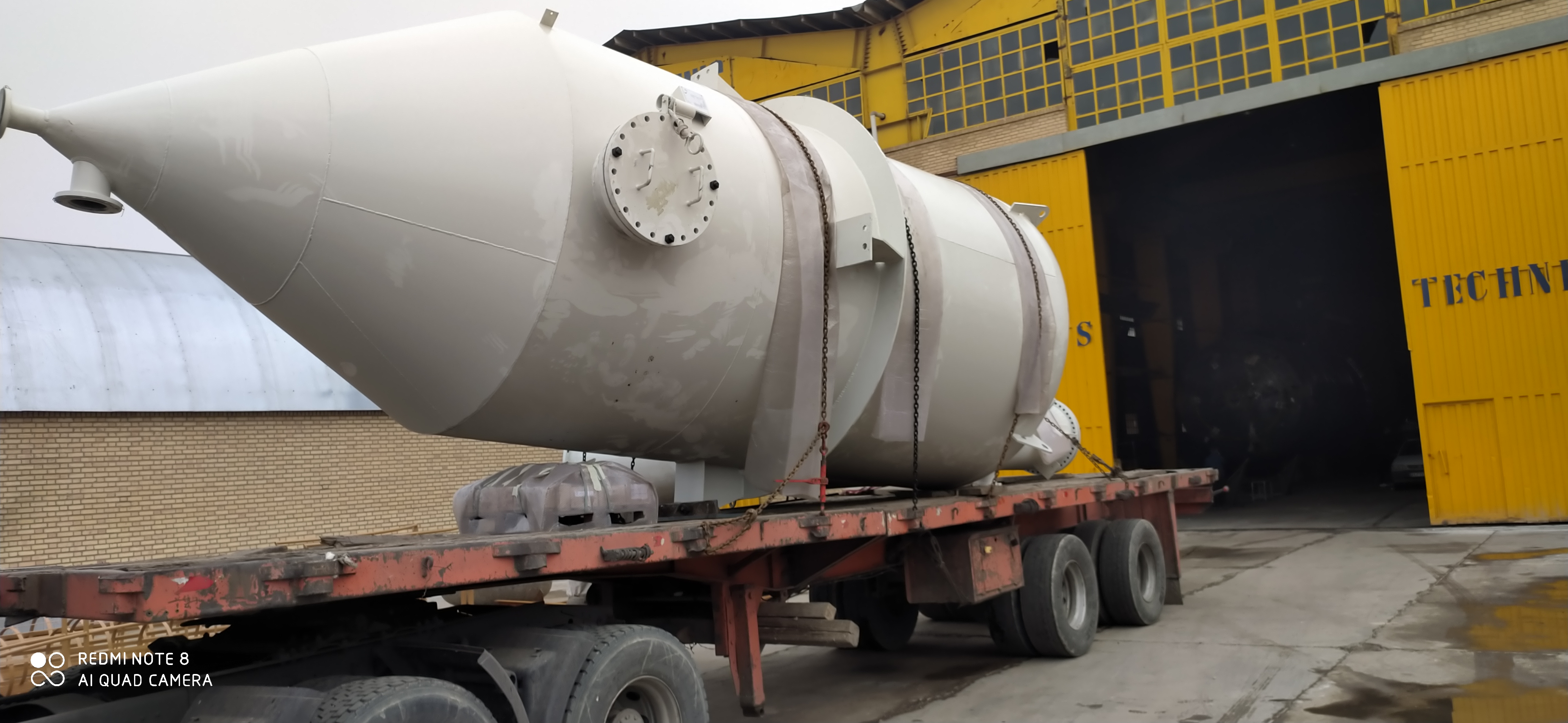

Specialized Process Equipment: Equipment photograph 06
